Description
Technical Parameters

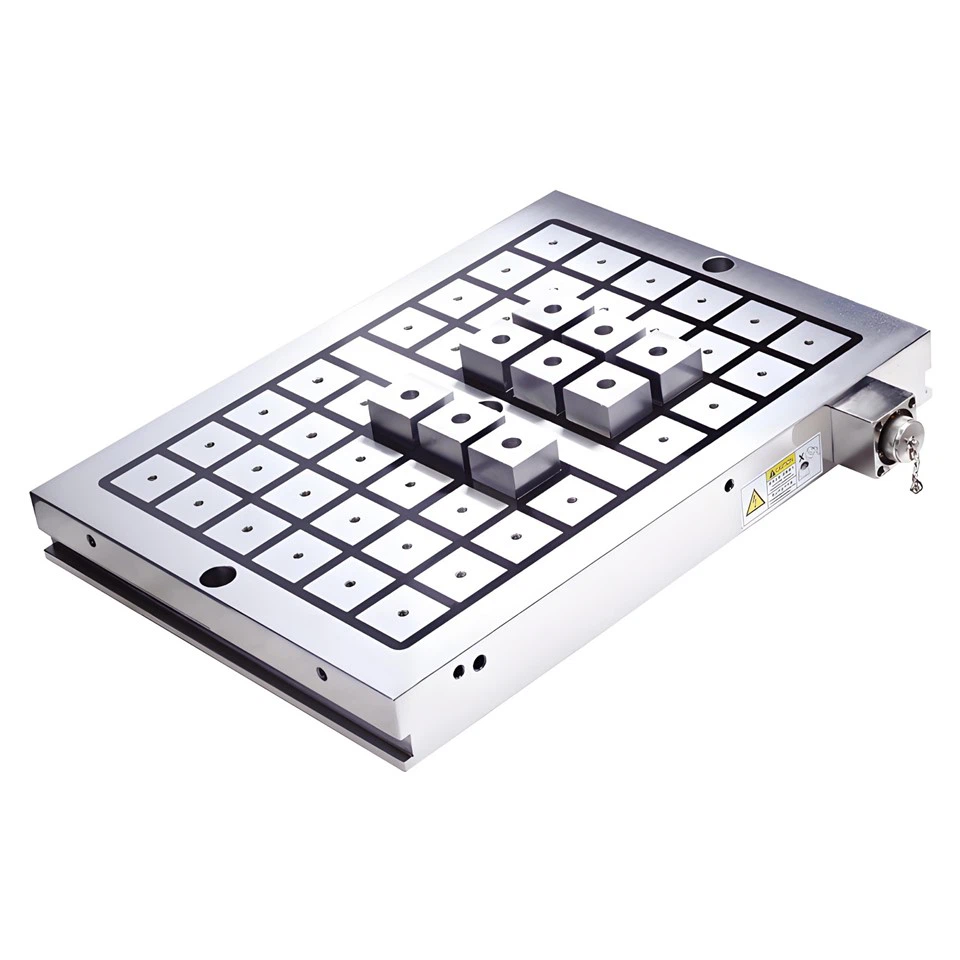

Feature of Electro-Permanent Magnetic Chuck
1.Comprising 50mm*50mm poles with a force of 16-17kgf/cm.
2. lt is possible to predetermine the force generated by counting the number of poles, workpiece gripping at least 4 pole contact faces.
3. The controller does the magnetizing or demagnetizing in 0.5~ 3 seconds.
4. Chuck is tested for Slippering force, Waterproof test, Temperature rise test, and Electrical & Demagnetizing tests.
Electro-Permanent Magnetic Chuck Introduction
Specification of Electro-Permanent Magnetic Chuck
| Model | Dimension(mm) | Pole Number | Weight(kgs) | |||
| Length | Width | High | Net | Gross | ||
| EP50-205 | 470 | 258 | 58 | 18 | 68 | 72 |
| EP50-206 | 595 | 258 | 58 | 24 | 81 | 89 |
| EP50-208 | 775 | 258 | 58 | 30 | 106 | 116 |
| EP50-209 | 900 | 258 | 58 | 36 | 123 | 133 |
| EP50-210 | 1025 | 258 | 58 | 42 | 140 | 152 |
| EP50-303 | 327 | 315 | 58 | 16 | 54 | 62 |
| EP50-304 | 436 | 315 | 58 | 24 | 78 | 86 |
| EP50-305 | 496 | 315 | 58 | 28 | 85 | 93 |
| EP50-306 | 595 | 315 | 58 | 32 | 99 | 109 |
| EP50-308 | 775 | 315 | 58 | 40 | 129 | 139 |
| EP50-309 | 900 | 315 | 58 | 48 | 150 | 162 |
| EP50-310 | 1025 | 315 | 58 | 56 | 171 | 183 |
| EP50-403 | 430 | 320 | 58 | 24 | 73 | 82 |
| EP50-405 | 490 | 430 | 58 | 36 | 112 | 120 |
| EP50-406 | 605 | 436 | 58 | 48 | 140 | 150 |
| EP50-408 | 775 | 436 | 58 | 60 | 179 | 189 |
| EP50-409 | 900 | 436 | 58 | 72 | 208 | 220 |
| EP50-410 | 1000 | 400 | 68 | 84 | 212 | 225 |
| EP50-503 | 500 | 315 | 58 | 28 | 83 | 92 |
| EP50-505 | 510 | 500 | 58 | 42 | 135 | 142 |
| EP50-506 | 605 | 500 | 58 | 56 | 160 | 170 |
| EP50-508 | 770 | 500 | 68 | 70 | 204 | 214 |
| EP50-509 | 900 | 500 | 68 | 84 | 238 | 250 |
| EP50-510 | 1010 | 500 | 68 | 98 | 267 | 278 |
| EP50-603 | 600 | 310 | 58 | 32 | 98 | 106 |
| EP50-604 | 600 | 436 | 58 | 48 | 140 | 150 |
| EP50-605 | 600 | 500 | 58 | 56 | 139 | 149 |
| EP50-606 | 615 | 600 | 58 | 72 | 195 | 207 |
| EP50-608 | 625 | 770 | 68 | 90 | 255 | 267 |
| EP50-609 | 890 | 615 | 68 | 108 | 290 | 320 |
| EP50-610 | 1010 | 615 | 68 | 126 | 329 | 349 |
Application of Electro-Permanent Magnetic Chuck
1. Used for normal and heavy-duty drilling, milling, and CNC machining centers.
2. Best used for workpieces at least 250*250 mm and 10 mm thick, for small and medium dimensions with normal operating air gaps.
aPPLICATION
