Great Magtech (Xiamen) Electric Co., Ltd is one of the most reliable manufacturers and suppliers of micro pitch electromagnetic chuck in China. We warmly welcome you to wholesale high quality micro pitch electromagnetic chuck from our factory. Good service and reasonable price are available.

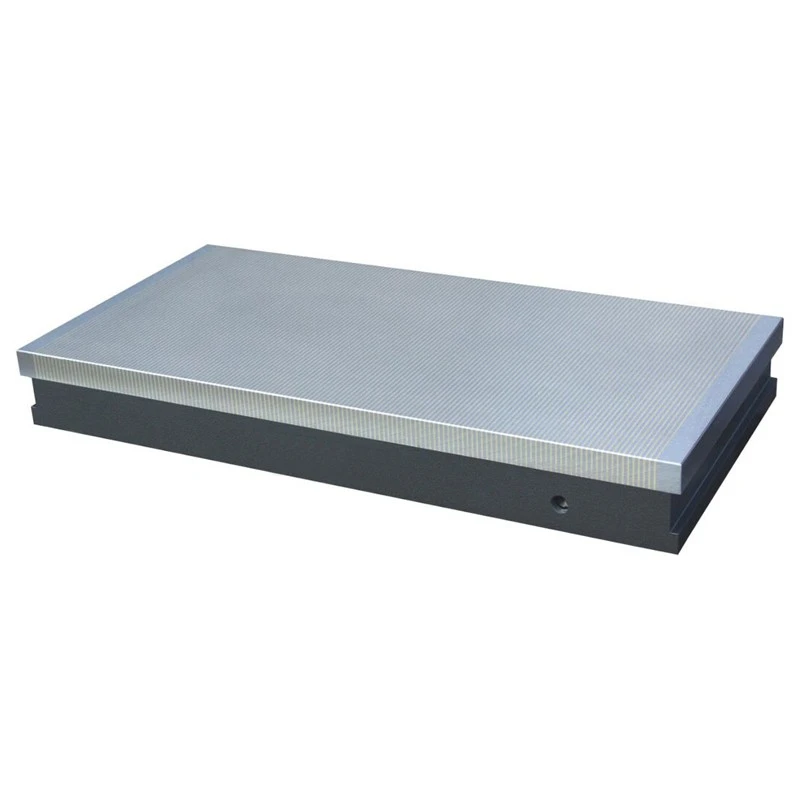

Micro Pitch Electromagnetic Chuck

Our magnetic chucks utilize the attractive force of permanent magnets to stably clamp and hold workpieces in place. Magnetic chucks can be switched between "closed" and "open" states using an easy one-touch operation that controls the activation of the permanent magnets.

Compared to conventional work-holding devices, magnetic clamps offer greater precision and safety, as well as more diverse operating options. The same magnetic clamp can accommodate a variety of workpiece sizes and shapes, and due to its automatic clamping function, it can reduce operating time, equipment expenses, and operating costs.

Feature of Micro Pitch Electromagnetic Chuck

1. Excellent steel character relieves precision change in use.
2. Small thermal deformation, high precision.
3. Maximum holding force can reach 12kgf/mm².

Specification of Micro Pitch Electromagnetic Chuck


Model	Dimensions(mm)				DC(V)	Current(A)	Weight(kg)
Model	A	B	H	E(Pole Distance)	DC(V)	Current(A)	Weight(kg)
GME-EMQC-1530M	150	300	90	1+3	110V	0.77	37
GME-EMQC-1540M	150	400	90	1+3	110V	0.84	45
GME-EMQC-2040M	200	400	90	1+3	110V	1.2	56
GME-EMQC-2045M	200	450	90	1+3	110V	1.44	62
GME-EMQC-2050M	200	500	90	1+3	110V	1.56	68
GME-EMQC-2550M	250	500	90	1+3	110V	2.16	85
GME-EMQC-3060M	300	600	90	1+3	110V	2.28	130
GME-EMQC-30100M	300	1000	90	1+3	110V	3.36	175
GME-EMQC-4080M	400	800	90	1+3	110V	3.48	200
GME-EMQC-40100M	400	1000	90	1+3	110V	4.56	230
GME-EMQC-50100M	500	1000	90	1+3	110V	4.8	255
GME-EMQC-50120M	500	1200	90	1+3	110V	5.04	285
GME-EMQC-60100M	600	1000	90	1+3	110V	5.16	310
GME-EMQC-1540X	150	400	90	0.5+1.5	110V	0.84	45
GME-EMQC-2040X	200	400	90	0.5+1.5	110V	1.2	56
GME-EMQC-2045X	200	450	90	0.5+1.5	110V	1.32	62
GME-EMQC-2050X	200	500	90	0.5+1.5	110V	1.56	68
GME-EMQC-2550X	250	500	90	0.5+1.5	110V	2.04	85
GME-EMQC-3060X	300	600	90	0.5+1.5	110V	2.16	130
GME-EMQC-30100X	300	1000	90	0.5+1.5	110V	3.36	175
GME-EMQC-4080X	400	800	90	0.5+1.5	110V	3.48	200
GME-EMQC-40100X	400	1000	90	0.5+1.5	110V	4.56	230
GME-EMQC-50100X	500	1000	90	0.5+1.5	110V	4.8	255
GME-EMQC-50120X	500	1200	90	0.5+1.5	110V	5.04	285

Suitable Of Micro Pitch Electromagnetic Chuck

Widely used in grinding machines, small and flatwork pieces.

Package of magnet chuck

package of magntic chucks
