Great Magtech (Xiamen) Electric Co., Ltd is one of the most reliable manufacturers and suppliers of permanent magnetic filter bars in China. We warmly welcome you to wholesale high quality permanent magnetic filter bars from our factory. Good service and reasonable price are available.

This magnetic separator bar

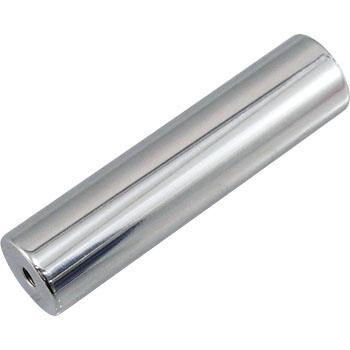

Magnetic Tubes are named just because they are made from the strong NdFeB or SmCo, Ferrite Magnets are in stainless steel tubes by fully or non-fully welding. Because the appearance of stainless steel rod or bar with good polishing, many customers also call them magnetic rods, magnetic bars, magnetic filter bars, or magnet bars. They are the most efficient permanent magnetic units for catching, removing ferrous metals from various materials in different fields. According to a different condition, they can be assembled into a grate magnet, a magnetic drawer, or a magnetic trap with other stainless steel parts. There are square and round magnetic tubes.

Multiple End Configurations for Easy Installation

Available with nail-head, threaded holes, double screw bolts, internal or external threads, etc.
Can be easily mounted into filter housings, grates, drawers, or customer-designed frames.
Optional end caps or flanges for special filter designs.

Different Types of Magnetic Rods

Applications of magnetic rods

Permanent magnet filter strips are widely used across various industries to effectively remove ferromagnetic contaminants from flowing materials. They are primarily used in liquid and slurry processing lines, as well as in the food and beverage, pharmaceutical, chemical, and plastics manufacturing industries. In these industries, permanent magnet filter strips are installed in pipes, hoppers, or housings to capture fine iron and steel particles, thereby ensuring product purity, protecting downstream equipment from damage, and maintaining process integrity. Furthermore, they are widely used in the processing of powders, granules, and dry bulk materials for quality control and equipment safety. Their main advantages include: utilizing their permanent magnetism without the need for a power source; ease of installation and cleaning, minimizing downtime; robust construction to withstand harsh environments; and the ability to provide continuous automated protection in critical process flows.

Applications of Permanent Magnet Filters

Why Choose GME Magnetic Bars?

10+ years of experience in magnetic separation and industrial magnet solutions.

In-house design and manufacturing for magnets, magnetic bars, and complete separator systems.

Strict quality control for magnetic strength, welding, surface finish, and leakage testing.

Fast delivery for standard sizes, flexible lead time for customized designs.

Professional support for OEM/ODM projects and long-term cooperation.

Our Certificates

Our magnetic building blocks differ from similar products on the market. They are made of food-grade stainless steel, making them more environmentally friendly and durable. The products are safe for direct food contact and have passed professional certifications, guaranteeing their quality

Our Certificates

FAQ

01. What is the surface magnetic strength of your magnetic bars?

The surface magnetic strength of our magnetic bars ranges from 4,000 to 12,000 Gauss, depending on the diameter, magnet grade, and application requirements. For food and pharmaceutical industries, high-strength grades (10,000–12,000 Gauss) are often recommended to capture very fine iron particles. All magnetic values are measured directly on the bar surface using a certified Gauss meter to ensure accuracy.

02. Which industries can use magnetic bars for filtration?

Magnetic bars are suitable for a wide range of industries, including food and dairy processing, beverage, pharmaceutical, plastics, chemicals, ceramics, minerals, and CNC coolant filtration. Whether your material is powder, pellets, slurry, or liquid, magnetic bars help remove ferrous contamination and protect your production process and equipment.

03. What materials are your magnetic bars made of?

Our magnetic bars use high-grade NdFeB (neodymium) rare-earth magnets as the core, housed inside sealed stainless steel 304 or 316/316L tubes. For food and pharmaceutical applications, 316L is recommended due to its corrosion resistance and hygiene compliance. All housings are fully welded and leak-proof to prevent product contamination.

04. How do I choose the right magnetic bar for my application?

Choosing the right magnetic bar depends on several factors, including your material type, temperature, hygiene requirements, particle size of contaminants, bar diameter, and installation structure. If you share your process details with us, our engineering team will recommend the most suitable Gauss level, material grade, and end-connection design.
