Do you know? The drone market is expected to grow at a rate of 25% between 2024 and 2031. In this rapidly evolving world of drone technology, the motors powering these drones are pivotal to their performance, efficiency, and reliability. In motors lies a crucial component, magnets.
Whether it's a hobbyist's quadcopter or a professional-grade drone used for commercial applications, the quality and characteristics of the magnets within the motors can significantly influence flight stability, power output, and overall efficiency. This article will cover the role of magnets in drone motors, exploring their types, properties, and the technological advancements driving their development.
Let's dive in!
Basics Of Drone Motors
Before diving deep into the types and materials of magnets, let's take a look at the basics of the types of motors.
Brushed Motors
Brushed motors use brushes to transfer electrical current to the motor's rotor, generating motion through the interaction of magnetic fields. They are simple and cost-effective but have shorter lifespans and lower efficiency due to friction and wear.
Brushless Motors
Brushless motors use an electronic controller to create a rotating magnetic field that interacts with permanent magnets on the rotor, producing motion. They offer higher efficiency, greater power, and longer lifespan, making them ideal for modern drones despite their higher complexity and cost.
Components of Drone Motors
Rotor
The rotor is the moving part of the motor, connected to the propeller, containing either windings (brushed) or permanent magnets (brushless). It rotates to generate thrust for the drone.
Stator
The stator is the stationary component with wire coils that create a magnetic field to interact with the rotor. Brushless motors, work with an electronic controller to produce a rotating magnetic field.
Magnets
Magnets are essential for creating the magnetic fields that drive motor rotation. In brushless motors, high-strength permanent magnets in the rotor interact with the stator's electromagnetic field for efficient operation.
Types Of Magnets
Now, let's take a look at the types of magnets.
Permanent Magnets
Permanent magnets generate a consistent magnetic field without the need for an external power source. Made from materials like neodymium, ferrite, or samarium cobalt, they are commonly used in drone motors for their strong and stable magnetic properties.
Electromagnets
Electromagnets produce a magnetic field when an electric current passes through a coil of wire wrapped around a core, typically made of iron. Their magnetic strength can be adjusted by varying the current, but they are less commonly used in drone motors due to the need for continuous power.
Types Of Magnetic Materials Used In Drones
|
|
|

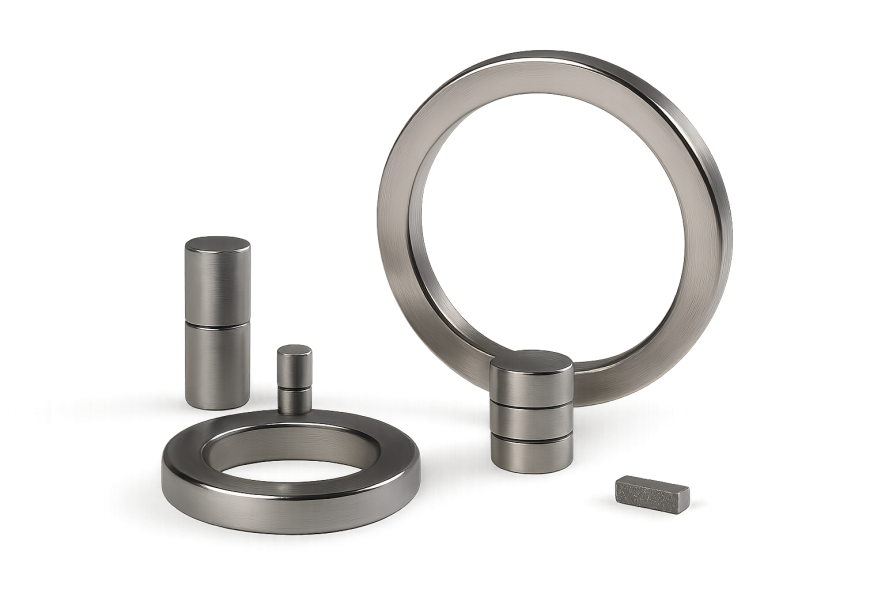

Neodymium
Neodymium magnets, made from an alloy of neodymium, iron, and boron (NdFeB), are the strongest type of permanent magnets available. They provide high magnetic strength and are widely used in drone motors for their superior performance, though they can be brittle and are prone to corrosion without proper coating.
Ferrite
Ferrite magnets, also known as ceramic magnets, are made from a mixture of iron oxide and strontium carbonate or barium. They are less powerful than neodymium magnets but are highly resistant to corrosion and very cost-effective, making them suitable for applications where high strength is not critical.
Alnico
Alnico magnets are composed of aluminum, nickel, and cobalt, along with iron and other elements. They offer good temperature stability and can be magnetized to produce strong magnetic fields, though they are generally less powerful than neodymium magnets. They are often used in applications requiring high durability and temperature resistance.
Samarium Cobalt
Samarium cobalt magnets, made from an alloy of samarium and cobalt, are known for their high magnetic strength and excellent resistance to temperature changes and corrosion. They are ideal for high-performance applications where extreme environmental conditions are a factor, despite being more expensive than other types of magnets.
Factors Impacting the drone motor size for your quadcopter
Choosing the appropriate motor size for a quadcopter is crucial for its performance, stability, and efficiency. Several factors need to be considered to determine the ideal motor size:
Weight of the Quadcopter
Total Weight: The combined weight of the frame, battery, electronics, payload, and motors themselves. Heavier quadcopters require more powerful motors to generate sufficient lift.
Payload Capacity: The weight of any additional payload (e.g., cameras, sensors) must be accounted for when selecting motor size.
Desired Thrust-to-Weight Ratio
A common rule of thumb is to aim for a thrust-to-weight ratio of around 2:1 for general flight, which means the total thrust generated by all motors should be about twice the weight of the quadcopter.
For aggressive maneuvers or high-speed flying, a higher thrust-to-weight ratio (e.g., 3:1 or higher) might be desired.
Propeller Size and Type
Diameter and Pitch: Larger propellers can produce more thrust but require more torque, necessitating larger motors. The pitch of the propeller also affects the thrust and motor load.
Material: Propeller materials (e.g., plastic, carbon fiber) can impact the efficiency and durability, influencing motor choice.
Battery Voltage (Cell Count)
The voltage provided by the battery (measured in cells, e.g., 3S, 4S, etc.) impacts the RPM and power output of the motors. Higher voltage batteries can drive higher RPM motors but may require motors rated for that voltage to avoid damage.
Motor KV Rating
KV Rating: The KV rating of a motor indicates the number of revolutions per minute (RPM) per volt without load. Lower KV motors are suitable for larger propellers and higher torque, while higher KV motors are better for smaller propellers and higher speeds.
Efficiency: Matching the motor KV to the propeller size and battery voltage for optimal efficiency is key to maximizing flight time and performance.
Importance of Magnet Quality
Impact on Efficiency
High-quality magnets enhance the efficiency of drone motors by ensuring strong and consistent magnetic fields, which reduce energy losses and improve overall performance. This results in longer flight times and better battery life.
Impact on Power Output
Superior magnets contribute to higher power output, enabling the motor to generate more thrust and handle greater loads. This is crucial for achieving optimal drone performance, especially in demanding applications like racing or heavy-lift operations.
Impact on Motor Lifespan
Using high-quality magnets increases the durability and longevity of the motor. They are less prone to demagnetization and can better withstand operational stresses, leading to fewer replacements and maintenance needs over time.
Advances in Magnet Technology for Drone Motors
Development of High-Performance Magnets
Recent advances in magnet technology have led to the development of high-performance magnets specifically tailored for drone motors. These magnets are engineered to provide superior magnetic strength, thermal stability, and durability, significantly improving motor efficiency and reliability.
Innovations in Material Science
Innovations in material science have played a crucial role in advancing magnet technology. Researchers have developed new alloys and composites, such as improved neodymium-iron-boron (NdFeB) and samarium-cobalt (SmCo) magnets, which offer enhanced performance characteristics while being more resistant to environmental factors like heat and corrosion.
Enhanced Magnetic Properties
The latest high-performance magnets feature enhanced magnetic properties, including increased coercivity and remanence. These improvements allow for stronger and more stable magnetic fields, which boost the power output and efficiency of drone motors. As a result, drones can achieve better flight dynamics, longer operational times, and increased payload capacities.
Miniaturization and Weight Reduction
Importance for Drone Efficiency and Flight Time
Miniaturization and weight reduction are crucial for enhancing drone efficiency and extending flight time. Smaller and lighter motors reduce the overall weight of the drone, allowing for better maneuverability, longer battery life, and improved energy efficiency.
Thermal Management
Advances in Heat-Resistant Magnets
Recent advancements in heat-resistant magnets ensure they maintain their magnetic properties at higher temperatures, enhancing motor reliability and performance under demanding conditions.
Cooling Technologies for High-Performance Motors
Innovative cooling technologies, such as improved heat sinks and advanced cooling systems, have been developed to manage the heat generated by high-performance motors. These technologies help prevent overheating, ensuring consistent motor performance and prolonging the lifespan of the motor components.
Practical Considerations for Choosing Magnets
Factors Affecting Magnet Selection
Drone Type and Application
The choice of magnets depends on the type of drone and its intended application. For instance, racing drones require high-strength magnets for maximum power and speed, while commercial drones used for photography or surveying may prioritize efficiency and stability over raw power.
Environmental Conditions
Environmental factors such as temperature, humidity, and exposure to corrosive elements can impact magnet performance. Selecting magnets with appropriate resistance to these conditions ensures reliability and longevity, especially for drones operating in harsh environments.
Cost vs. Performance
Balancing cost and performance is essential when choosing magnets. High-performance magnets, like neodymium, offer superior efficiency and power but come at a higher price. For hobbyist drones, cost-effective options like ferrite magnets may be sufficient, whereas professional applications might justify the investment in more expensive materials.
Popular Magnet Configurations
Common Setups in Commercial Drones
Commercial drones typically use standardized magnet configurations optimized for balanced performance and cost. These setups often involve using neodymium magnets in brushless motors to achieve a good mix of power, efficiency, and durability.
Custom Configurations for Specialized Drones
Specialized drones, such as those used for industrial inspections or heavy lifting, may require custom magnet configurations. These configurations are tailored to meet specific performance criteria, such as increased torque or enhanced thermal resistance, to ensure the drone can handle its unique tasks effectively.
Maintenance and Replacement
Signs of Magnet Wear and Failure
Over time, magnets can lose their strength or suffer physical damage, leading to decreased motor performance. Signs of wear and failure include reduced power output, overheating, unusual noises, or visible damage to the motor components.
Best Practices for Maintenance
Regular inspection and maintenance are crucial to prolonging motor life. This includes checking for signs of wear, ensuring proper cooling, and replacing worn-out magnets promptly. Keeping motors clean and free from debris also helps maintain optimal performance and prevent premature magnet degradation.
Real World Applications
Consumer Drones
Popular Models and Their Motor Magnets
Consumer drones, such as the DJI Phantom and Mavic series, use high-quality neodymium magnets in their brushless motors to ensure efficient and reliable performance. These magnets help achieve stable flight, good maneuverability, and longer battery life, making these models popular among hobbyists and casual users.
Professional Drones
Drones Used in Agriculture, Surveying, and Cinematography
Professional drones used in sectors like agriculture, surveying, and cinematography, such as the DJI Matrice and Parrot Anafi, rely on advanced brushless motors with high-performance magnets. These drones require powerful and efficient motors to carry heavy payloads, operate in various environmental conditions, and deliver precise, stable flight necessary for high-quality data capture and imagery.
High-Performance and Racing Drones
Specific Requirements and Magnet Performance
High-performance and racing drones, such as those used in FPV (First Person View) racing, demand exceptional motor performance with maximum power and rapid response times. These drones use specialized neodymium magnets that offer the highest possible magnetic strength to achieve superior thrust, acceleration, and speed. The magnets' lightweight and high efficiency are critical for quick maneuvers and prolonged racing sessions without overheating.
Future Trends in Magnet Technology for Drones
Emerging Materials
New Alloys and Composites
The future of magnet technology for drones is being shaped by the development of new alloys and composite materials. Researchers are experimenting with combinations of rare earth elements and other metals to create magnets that offer superior performance characteristics. These advanced materials aim to provide higher magnetic strength, improved thermal stability, and greater resistance to demagnetization.
For example, advancements in neodymium-iron-boron (NdFeB) alloys are resulting in magnets that can maintain their performance under higher temperatures, which is crucial for high-speed and heavy-duty drone operations.
Smart Magnets
Integrating Sensors and Smart Technology
Smart magnets represent a significant innovation in the field, integrating sensors and electronic components within the magnetic material. These smart magnets can monitor and report their performance, including temperature, magnetic field strength, and potential degradation over time.
By providing real-time data, smart magnets can enhance predictive maintenance practices, allowing for timely interventions before failures occur. Additionally, integrating smart technology can optimize the magnetic field dynamically, improving motor efficiency and adapting to different operational conditions automatically.
Sustainability
Eco-Friendly Materials and Manufacturing Processes
As the drone industry grows, there is increasing emphasis on sustainability. Future trends in magnet technology are focusing on the use of eco-friendly materials and sustainable manufacturing processes. Efforts are being made to reduce the reliance on rare earth elements, which have significant environmental and geopolitical concerns associated with their extraction and processing. Alternatives, such as ferrite magnets made from abundant materials like iron oxide, are being improved to offer better performance while being more environmentally friendly.
Additionally, recycling programs and the development of more energy-efficient manufacturing techniques are being prioritized to reduce the environmental footprint of magnet production. These sustainable practices aim to create a more responsible and long-term supply chain for the drone industry.
Conclusion
Magnets are crucial for drone motor performance, affecting flight time and maneuverability. With advancing drone technology, high-quality magnets become increasingly important. Innovations in high-performance materials, smart magnets, and sustainable processes promise more powerful, efficient, and eco-friendly drones. Staying informed on these developments is essential for all involved in the drone industry.
