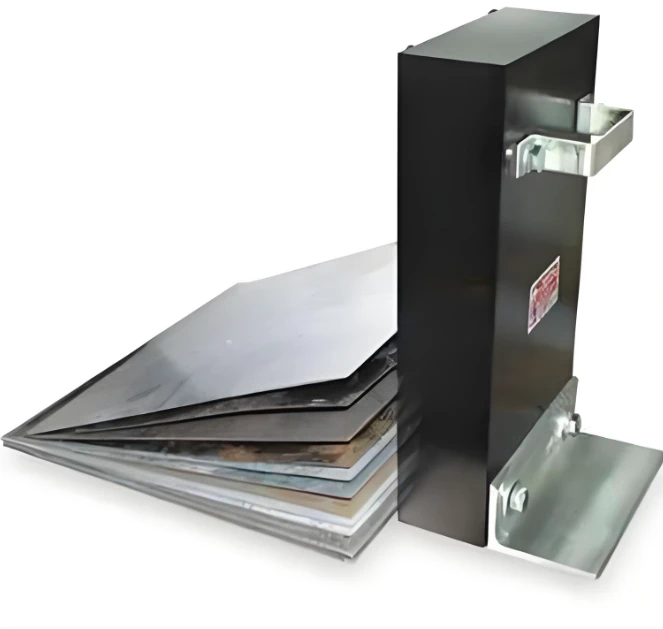

Great Magtech (Xiamen) Electric Co., Ltd is one of the most reliable manufacturers and suppliers of switchable magnetic sheet separators in China. We warmly welcome you to wholesale high quality switchable magnetic sheet separators from our factory. Good service and reasonable price are available.
Features of Magnetic Sheet Fanners
1. Lifetime Guarantee of Permanent Magnetic Strength
2. Less than 4-5% magnetic loss in 100 years
3. Durable 304 Stainless Steel construction standard
4. Finest of Magnetic Materials used meeting with IMA or MMPA standards
5. Can be applied to manual as well as robotic press-feeding systems
6. Lift handle and counter-balanced base for stability
Working principle of the Magnetic Sheet Separators

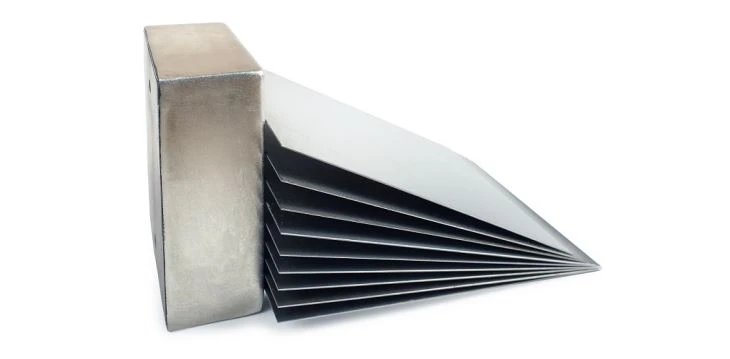

The magnetic sheet separator creates a strong magnetic field in the ferrous steel sheet stack. The induced magnetic field creates a magnetic polarity between the top and second sheets. Like magnetic polarity repels one another, resulting in the top sheet pushing away from the lower sheet.
Magnetic Sheet Separators increase efficiency, production, and safety while reducing the handling problems of stacked sheet steels. Magnetic Sheet Separators reduce marring, double-blanking, and the need for prying sheet stock apart.
Benefits of using a sheet separator
1. Increase Safety, Productivity, Uptime & Profitability by reducing double-blanking
2. Reduce scrap loss
3. Reduce worker fatigue
Magnetic Sheet Separator Specification
The performance chart was developed by testing a standard mill-run 16-24" mild steel sheet. This chart was developed around common sheet sizes. Standard sheet fanners can handle 30 to 9 gauge sheet (3-3.8mm) thickness metal applications.
| Part Number | A (") | B (") | C (") | D (") |
| Series 1 – For Light Gage Steel | ||||
| MSS1-1427 | 7.25 | 5.25 | 1.75 | 5 |
| MSS1-1428 | 10.25 | 5.25 | 1.75 | 5 |
| MSS1-1429 | 13.25 | 5.25 | 1.75 | 5 |
| MSS1-1430 | 16.25 | 5.25 | 1.75 | 5 |
| Series 2 – For Medium Gage Steel | ||||
| MSS2-1431 | 10.25 | 6.25 | 2.75 | 8 |
| MSS2-1432 | 13.25 | 6.25 | 2.75 | 8 |
| MSS2-1433 | 16.25 | 6.25 | 2.75 | 8 |
| MSS2-1434 | 19.25 | 6.25 | 2.75 | 8 |
| Series 3 – For Heavy Gage Steel | ||||
| MSS3-1435 | 10.25 | 6.25 | 3.75 | 10 |
| MSS3-1436 | 13.25 | 6.25 | 3.75 | 10 |
| MSS3-1437 | 16.25 | 6.25 | 3.75 | 10 |
Common Applications of Magnetic Sheet Separators
Magnetic sheet separators play a crucial role in CNC machining, metal processing, and a wide range of manufacturing industries. Designed for the efficient separation of large metal sheets such as steel, they effectively prevent material adhesion or blockage during processing, ensuring smooth material handling from the assembly line to the warehouse. This significantly reduces human intervention and potential sheet damage, helps maintain a stable and continuous workflow, thereby comprehensively improving production efficiency, reducing downtime, and ultimately optimizing overall operational performance.
Magnetic Sheet Separators Packaging
Outer Packaging Materials: Sheet dividers are typically packaged in sturdy cardboard boxes or wooden crates to ensure they are not damaged during transport. For larger sheet dividers, wooden frames or reinforced pallets may be needed to enhance packaging stability.
Inner Lining Protection: Inside the cardboard box or wooden crate, the sheet divider should be wrapped and protected with cushioning materials such as foam, bubble wrap, and pearl cotton to prevent vibration and impact during transport and to prevent product damage. Electrical components and precision parts, in particular, should have special protection measures.
Product Securing: Use securing brackets or special clamps to firmly secure the sheet divider inside the packaging box to ensure it does not shift during handling. For rolls or long strip sheet dividers, ropes or straps can also be used to secure them to prevent them from tipping over during transport.
