If you're listing innovations that have improved industrial applications, particularly high-precision placement of objects, magnetic chucksmake the top of the list. These modern devices harness the power of the magnetic field and securely keep workpieces in place. It's no wonder that magnetic chucks are now the ideal choice over traditional mechanical methods; the new normal in machining and holding workpieces takes accuracy up several notches. What's more, magnetic chucks are invaluable assets in applications such as milling, grinding, and drilling. That being said, it is crucial that you carefully select the appropriate type of mag chuck. We'll be discussing magnetic chuck fine pole vs standard pole. This article has all the details you need to make an informed decision.
Brief Overview Of Magnetic Chucks
In most machinery-based applications, magnetic chucks serve as a time-saving solution. Additionally, these devices enhance the accessibility of all sides of the workpiece without compromising position. By incorporating magnetic chucks into your production facility, you can speed up processes and boost manufacturing capacity. Not only that, but you also reduce costs related to machining errors and downtimes-and ultimately maximize profits.
A magnetic chuck is now quite common in machinery factories. Its use is quite widespread, replacing traditional vises or pressing plates. As a result, there's been a significant boost in the efficiency of clamping and unloading processes. Due to its versatility, magnetic chucks are often referred to as magnetic beds or magnetic fixtures.
Using magnetic chucks offers an array of advantages. One of the key perks is the consistent clamping pressure. The unwavering magnetic pull guarantees a uniform grip on the workpiece, eliminating any variations in tightness. Additionally, the magnetic chucks provide complete support to the workpiece surface and securely hold its center area, thus resulting in less cycle time.
Another advantage of magnetic chucks is the cost-reduction, as magnetic chucks allow for quicker setup and take down-minimizing precious time and money in the process. By placing the workpiece directly on the magnetic plate and securing vices using the magnet, the process becomes more efficient.
Now that you've got your basics covered, let's head into the dilemma faced by modern shops when using mag chucks: the difference between fine pole vs standard pole magnetic chucks. Whether you need a magnetic chuck for grinding applications or are looking for a high-precision magnetic chuck for sale, read on to get your facts straight and make a smart choice.
Magnetic Chuck Fine Pole vs Standard Pole: An Intro
Standard Magnetic Chucks
Think of magnetic chucks as a convenient alternative to conventional gripping equipment. Using magnetic force from permanent magnets to firmly hold and secure workpieces, these offer a reliable and immediate gripping force. The materials involved are consistently and securely clamped. With magnetic chucks, your labor can enjoy heightened productivity levels in ferrous metal milling, grinding, and cutting applications.
The magnetic force of a standard mag chuck can reach an impressive strength of up to 16kg/cm², and it remains constant over time. Moreover, the magnetic field does not penetrate the surface of the workpiece, ensuring that neither the tool nor the machine's spindle becomes magnetized.
Securely holding workpieces that are 12 mm thin or higher, standard magnetic chucks are designed to provide a reliable grip. However, for workpieces thinner than that, a magnet with denser poles is necessary to ensure safe clamping. A 'finer' magnetic chuck snugly holds the workpiece in place, providing a secure fit during machining.

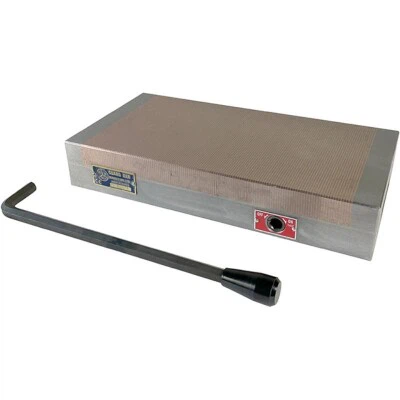

Fine-Pole Magnetic Chucks
Fine pole refers to the proximity of each pole, resulting in minimal space between them. The specific pole pattern is distributed on the chuck's work surface, making it an effective tool for any job. Typically, the magnetic force becomes stronger as the distance between poles increases. Fine-pole permanent magnetic chucks provide a shallow magnetic penetration into the workpiece. This trait is what makes these magnetic chucks popular for securely clamping thin materials and executing delicate machining tasks.
For applications involving electrical discharge machining (EDM), grinding, and drilling small parts, fine-pole magnetic chucks are now vital devices. These modern systems offer a range of benefits, including easy setup, consistent clamping force, minimal distortion of parts, and more. It is important to note that when using a drilling machine, a user needs to be cautious of the magnetic depth to avoid the drilling bit penetrating the surface of the chuck.
Standard Vs. Fine Pole Mag Chucks
Materials
Before we dive into the material standard and fine-pole mag chucks are made from, we need to get into the basic types of mag chucks. There are three kinds to choose from, namely permanent, electromagnetic, and electro-permanent.
Permanent magnetic chucks feature magnetized materials. The key aspect is the consistent magnetic field that doesn't rely on an electric current. Thanks to their highly magnetized nature, these retain their magnetic force indefinitely. This remarkable feature eliminates the need for electrical connections, switches, wires, brushes, and auxiliary generators. The magnet itself is a result of processing a special alloy, granting it immense power and an everlasting lifespan. Typically, industrial permanent magnets are kept within a carrier, and the alignment of their poles determines their operational state (active/inactive). During an operation, these poles are physically manipulated to activate or deactivate the permanent magnet.
These are well-suited for light-duty machining due to their reliability and safety. Hence the reason you'll find fine-pole magnetic chucks commonly based on permanent mag chucks. However, it is important to know that in heavier machining operations, or when the machines are scaled up, more mechanical effort is necessary to overcome magnetic friction. In that case, standard mag chucks are crucial. If the machinery becomes more complex, then the ideal choice is to move off permanent chucks altogether.
Electromagnetic chucks work their magic by generating a magnetic field in the presence of an electrical current. This field becomes active by coils powered by direct current (DC). To make things even more convenient, these chucks come with a control unit that enables effortless magnetization and demagnetization of the workpieces. Whether you prefer a manual, automatic, or combined system, electromagnetic chuck systems are perfect for your operations.
Electro-permanent magnetic chucks, your final choice, are the best of both electromagnetic and permanent magnetic chucks. The result: more powerful units, which are perfect for tasks involving metals. By using strong direct current, this type of magnetic chuck can quickly transform the ferromagnetic material into a permanent magnet, providing an effective solution.
Workpiece Compatibility
As mentioned above, to secure a 12 mm (or higher) thick workpiece, you need standard magnetic chucks. Once you move to thinner workpieces, you need a magnet with denser poles.
Although standard magnetic chucks are commonly used, they can pose a challenge when it comes to working with small workpieces due to their limited surface area. A larger magnetic chuck won't do the trick when it comes to clamping thin workpieces. The delicate materials allow the magnetic field to pass right through them, causing the flux lines of the magnetic field to close behind the workpiece. As a result, the magnetic force weakens, and the workpiece may shift or slide, or even become deformed.
Magnetic Penetration
Standard magnetic chucks employ the power of magnetism to securely grip a workpiece during the machining process. These create polarity within the ferrous material, i.e., the magnets establish a connection between the north and south poles. As the workpiece is between the magnet's poles, the magnetic flux is drawn into it. Ferrous elements possess poles that are contrary to the magnet's polarity, causing them to attract one another. By regulating this magnetic flux, you can effectively utilize magnets for metalworking tasks.
Fine-pole mag chucks mean a less impactful magnetic pull. By reducing the magnetic penetration in the presence of delicate workpieces, the magnet's pulling power is actually enhanced. Also, smaller workpieces with smooth surfaces are held more securely compared to those with rough surfaces.
In short, the strength of the magnetic attraction depends on the amount of magnetic flux that can be induced into the workpiece. A fine pole ensures minimal magnetic penetration into the workpiece, resulting in excellent holding capability for thinner pieces. Moreover, it has no adverse impact on EDM operations near the surface.
How To Choose Between Fine Pole Vs Standard Pole
Size & Shape
The shape and size of the magnetic fields are important players when it comes to the debate between magnetic chuck fine pole vs standard pole. When using a standard-spaced magnetic chuck, the magnetic fields extend significantly above the surface of the chuck. These fields form large loops, encompassing a larger area.
On the other hand, with a fine-pole magnetic chuck, the magnetic fields do not extend as far above the surface. Thus, only very small parts are affected by these fields.
Surface Area
Learn how to choose between fine pole vs standard pole by considering the surface area. The kind of surface area of the workpieces in question is a huge factor; smoother surfaces often have less resistance as compared to rough surfaces. A lapped finish with no air gaps is your best bet for top-notch magnetic holding conditions. On the other hand, a rough surface with numerous air gaps is usually problematic.
Hence, minimize the air gap, get optimal results. The decrease in air gap is what allows a larger contact area. On the other hand, poor outcomes are inevitable when dealing with large air gaps and minimal contact.
Machining Operations
When you want to choose the perfect magnetic chuck, it's important to consider the specific machining operations you'll be performing. Let's take a look at some of the most common operations-and the ideal magnetic chucks for each:
Milling: If you need a magnetic chuck that can be used for various types of machining operations, particularly milling, a standard magnetic chuck is your go-to option. However, if you'll be working with smaller or medium-sized workpieces, a fine-pole magnetic chuck will provide better clamping.
Drilling: Want to prevent damage to the workpieces and the magnetic chuck while drilling? You must use extensions that allow positioning the workpiece higher on the chuck. This way, you can avoid drilling all the way through and causing any damage.
Grinding: For heavy-duty grinding tasks, you'll need a strong surface grinder magnetic chuck. Look for high magnetic force to ensure a secure hold. However, some precision grinding applications require care to prevent the magnet from heating up…and potentially distorting the workpiece. In this case, standard electro-permanent fine pole magnetic chucks are the perfect choice.
Machining: For precision machining, you need a magnetic chuck that doesn't heat up excessively, just like in grinding. An electro-permanent magnetic chuck with a fine pole is the best option for maintaining stability during precision machining operations. Remember, by considering the specific requirements of your machining operations, you can choose the ideal magnetic chuck that will ensure excellent results.
Bottom Line
There's no doubt about the countless benefits of magnetic chucks. Moreover, these benefits multiply when you are precise about choosing between magnetic chuck fine pole vs standard pole. But that's not where your attention to selection stops; to get the perfect magnetic chuck, it's crucial to consider the specific application and usage.
A fine pole magnetic chuck possesses the characteristics that make it an ideal choice for thin, small, or uniquely shaped workpieces. In many situations, not only do these enhance safety by providing a secure hold, but they also reduce operational times and costs. On the other hand, a standard pole magnetic chuck, with its higher magnetic force, is better suited for larger workpieces.
Whatever your choice, focus on a guarantee of exceptional machining precision. Make sure to go for a manufacturer that produces magnetic chucks that are thoughtfully designed, enabling you to use workpieces safely and efficiently.
