Great Magtech (Xiamen) Electric Co., Ltd is one of the most reliable manufacturers and suppliers of Add-on Magnetic Head Pulleys in China. We warmly welcome you to wholesale high quality Add-on Magnetic Head Pulleys from our factory. Good service and reasonable price are available.

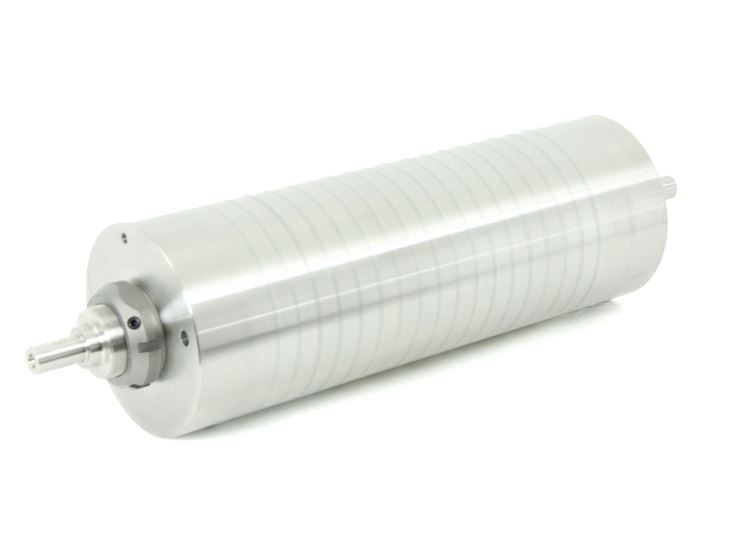

Magnetic Head Pulley Drum Magnets Separator

A simple exchange from the head pulley to the magnetic pulley will transform a conveyer to separator of iron particles from the raw material.

It's the No.1 item for food processing factories, chemicals, minerals, and recycling facilities.

The drums are mounted at the outlet of the carrier or directly above a vibratory feed.

High-intensity rare earth magnets are mounted in a wear-resistant stainless steel drum. The shell of the drum is supported by high-quality sealed bearings that provide reliable and smooth rotation around the magnetic element.

Features of the Magnetic Pulley

1. Selection of vertical and horizontal poles.

2. Available Samarium Cobalt magnet type for high temp. application.

3. Available custom-made pulley shaft and pole.Specifications1. Standard (FM): Vertical 2,000 gauss, Horizontal 1,000 gauss (pulley surface)2. High-intensity magnetic power type (ND): horizontal 3,000/5,000 gauss (pulley surface)3. Pulley OD: Φ215～Φ4004. Available in custom-made to pulley length and shaft size.

Specifications for Magnetic Drum Separators

Specifications For Magnetic Drum Separators

Item no.	Belt	ø	Max. capacity (m3/h)	Max Belt Speed (rpm)	A	C	D	F	I	J	K	Weight (KG)
215-400	400	215	14	0.8	500	40	32	119	10	27	909	75
215-500	500	215	17	0.8	600	40	32	119	10	27	1009	90
215-600	600	215	21	0.8	700	40	32	119	10	27	1109	100
215-650	650	215	23	0.8	750	40	32	119	10	27	1159	110
215-800	800	215	28	0.8	950	40	32	119	10	27	1359	130
215-1000	1000	215	35	0.8	1150	40	32	119	10	27	1559	160
315-400	400	315	20	1.2	500	40	32	119	10	27	909	130
315-500	500	315	27	1.2	600	40	32	119	10	27	1009	140
315-600	600	315	30	1.2	700	50	48	153	14	42.5	1173	190
315-650	650	315	35	1.2	750	50	48	153	14	42.5	1223	195
315-800	800	315	45	1.2	950	50	48	153	14	42.5	1423	230
315-1000	1000	315	55	1.2	1150	65	55	207	16	49	1717	280
400-400	400	400	35	1.5	500	50	48	153	14	42.5	973	200
400-500	500	400	45	1.5	600	50	48	153	14	42.5	1073	220
400-600	600	400	55	1.5	700	50	48	153	14	42.5	1173	270
400-650	650	400	55	1.5	750	50	48	153	14	42.5	1223	280
400-800	800	400	70	1.5	950	65	55	207	16	49	1517	330
400-1000	1000	400	90	1.5	1150	65	55	207	16	49	1717	420

Head roller magnets for conveyor belt

Head Roller Magnets For Conveyor Belt

Item no.	Belt	ø	Max. capacity (m3/h)	Max Belt Speed (rpm)	A	C	D	F	I	J	K	Weight (KG)
215-400	400	215	14	0.8	500	40	32	119	10	27	909	75
215-500	500	215	17	0.8	600	40	32	119	10	27	1009	90
215-600	600	215	21	0.8	700	40	32	119	10	27	1109	100
215-650	650	215	23	0.8	750	40	32	119	10	27	1159	110
215-800	800	215	28	0.8	950	40	32	119	10	27	1359	130
215-1000	1000	215	35	0.8	1150	40	32	119	10	27	1559	160
315-400	400	315	20	1.2	500	40	32	119	10	27	909	130
315-500	500	315	27	1.2	600	40	32	119	10	27	1009	140
315-600	600	315	30	1.2	700	50	48	153	14	42.5	1173	190
315-650	650	315	35	1.2	750	50	48	153	14	42.5	1223	195
315-800	800	315	45	1.2	950	50	48	153	14	42.5	1423	230
315-1000	1000	315	55	1.2	1150	65	55	207	16	49	1717	280
400-400	400	400	35	1.5	500	50	48	153	14	42.5	973	200
400-500	500	400	45	1.5	600	50	48	153	14	42.5	1073	220
400-600	600	400	55	1.5	700	50	48	153	14	42.5	1173	270
400-650	650	400	55	1.5	750	50	48	153	14	42.5	1223	280
400-800	800	400	70	1.5	950	65	55	207	16	49	1517	330
400-1000	1000	400	90	1.5	1150	65	55	207	16	49	1717	420

Applications of Magnetic Rollers

Chemical Industry
You can use magnetic rollers to remove ferrous contaminants from powders, granules, and chemical raw materials, helping improve product purity and protect processing equipment.

Recycling Industry
You can apply magnetic rollers in recycling lines to separate iron particles from mixed waste materials, improving recovery efficiency and increasing the value of recycled products.

Mineral Processing
You can use magnetic rollers to separate magnetic impurities from ores, sand, and mineral materials, helping you achieve cleaner output and more stable processing results.

Why Choose Us

Reliable Magnetic Performance

You can get magnetic rollers with stable and tested magnetic strength for consistent separation results.

Application-Based Solutions

You can choose suitable models based on your material type, working condition, and separation needs.

Pre-Shipment Testing

You can have more confidence because we check the magnetic performance before delivery.

Safe Export Packing

You can receive your products with secure packing designed for international transportation.
