Cable Ring Clutch Wire Rope Description:
The lifting ring clutch assembly consists of a steel wire rope, swage, clutch body, and curved bolt handle. To install, rotate the curved bolt to the opened position and insert the clutch in the recess. To lock onto the anchor, rotate the curved bolt handle until the handle contacts the panel surface. The Cable lifting ring clutch is an efficient, fast method in a connect/disconnect lifting system allowing precast concrete elements to be handled safely, with reliable and repeatable use. The high-quality, engineered ring clutch is dimensionally measured, mechanically load tested and magnetic particle inspected to ensure the manufacturing process meets and exceeds minimum design requirements.
Cable Ring Clutch Wire Rope Feature:
Product Name: Lifting ring clutch
Load:1.25T,2.5T,5.0T,10.0T,26.0T
Application: Construction lifting & fixing systems
Used: Precast concrete lifting system
Packaging: Carton or as per customer's requirements
Special specifications can also be produced according to drawings and samples.
Cable Ring Clutch Wire Rope Specification:
 | |||||||||||
| Part Number | Load Range | A | D | E | F | H | W | L | WD | Ultimatecapacity inTension (lbs) | Weight(lbs) |
| GMEQL001CB | 2T-3T | 10-1/2'' | 1/2'' | 1-1/8'' | 3-1/8'' | 2-1/2'' | 4-7/8'' | 23-3/4'' | 1/2'' | 30000 | 3.87 |
| GMEQL002CB | 4T-6T | 10-5/8'' | 3/4'' | 1-7/16'' | 3/4'' | 3'' | 5-5/8'' | 25-1/2'' | 3/4'' | 60000 | 7.38 |
| GMEQL003CB | 8T-12T | 15-1/2'' | 15/16'' | 2'' | 1'' | 3-3/8'' | 6-3/8'' | 33-1/2'' | 1'' | 120000 | 22.11 |
| GMEQL004CB | 12.5T-22T | 21'' | 1-3/8'' | 2-7/8'' | 1-1/4'' | 3-5/8'' | 8-7/8'' | 62'' | 1-1/4'' | 220000 | 60.63 |
Package of Cable Ring Clutch Wire Rope:
Knitting bags and plywood cases
Application of Cable Ring Clutch Wire Rope:

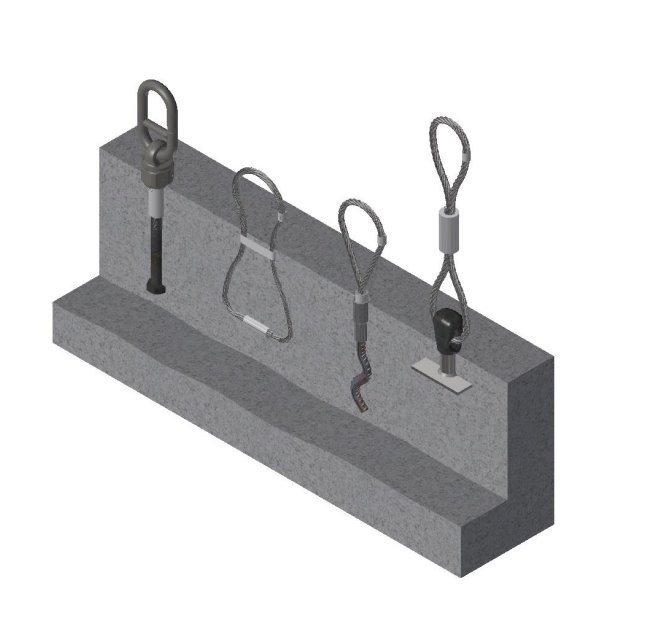

precast concrete wall panel lifting
Why Choose US
(1) More than 15 years experience in manufacturing and trading of precast concrete systems.
(2) Comply with strict technical requirements and meet the market's demand for human safety. (Precast concrete elements may be lifted several times after pouring and during storage and installation - by using this system, designers and workers managers can ensure that each lift is done safely and quickly. Without using a designed and coordinated system , may result in material breakage at some point during production/delivery.
(3) GME's products are enhanced through factory quality control inspections during the production process. Each order can be tension tested if necessary.
(4)OEM/ODM capability: GME has more than 10 years of experience in OEM/ODM products, more than 150 cooperative factories, we can provide you with competitive prices and stable quality.
