Great Magtech (Xiamen) Electric Co., Ltd is one of the most reliable manufacturers and suppliers of lifting erection anchors in China. We warmly welcome you to wholesale high quality lifting erection anchors from our factory. Good service and reasonable price are available.

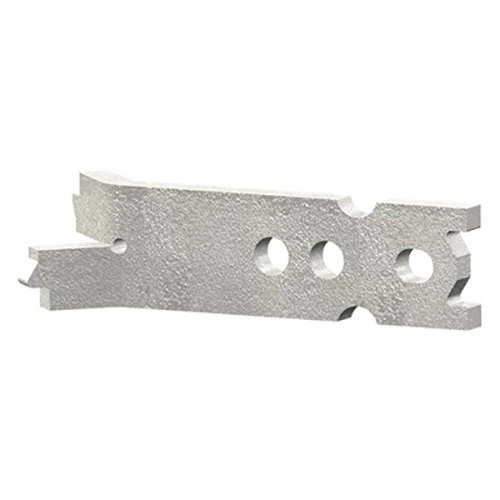

Erection Anchor Description
The erection anchor was made by stamping or punching or fire cutting production process. The erection anchor has bifurcation and cross hole to double reinforcement rebar into precast concrete. The erection anchor need cast in precast concrete with removable recess former. The recess former need 100% adaptation with erection anchor to prevent dirty or concrete into recess when they are casting. So the erection anchor head need to stamping very good dimension.
We have a full line of alp erection anchors, contact us for the latest technical information
 |  |  |  |  |

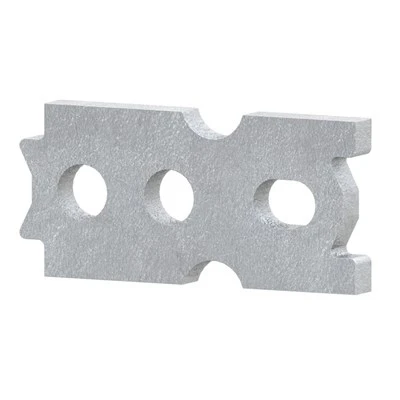

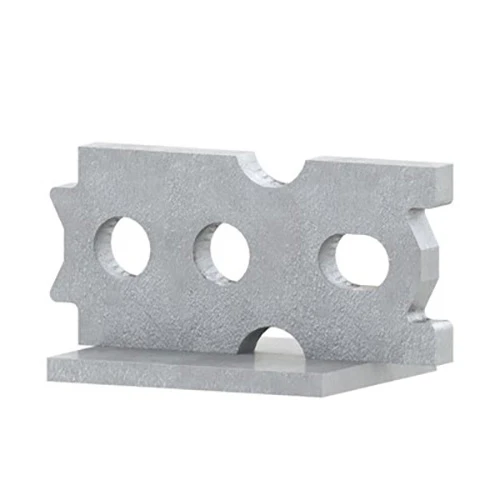

| 1T Spread Anchor | 1Ton L-Anchors | Erection Head Anchor with Shear Plate | Erection Head Anchor | Split Foot Erection Anchor |
 |  |  |  |  |

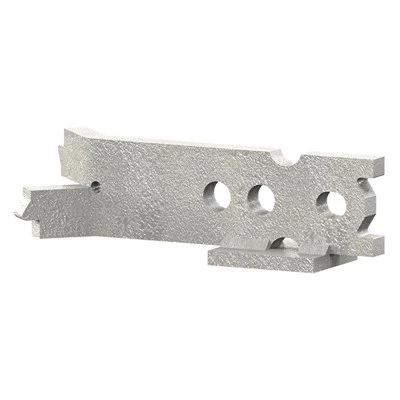

| Insulated Panel Anchor with plate | Insulated Panel Anchor | Plate Anchor | Split Foot 1 Ton Anchor | Split Foot Erection Anchor with Shear Plate |
 |  |  |  |  |

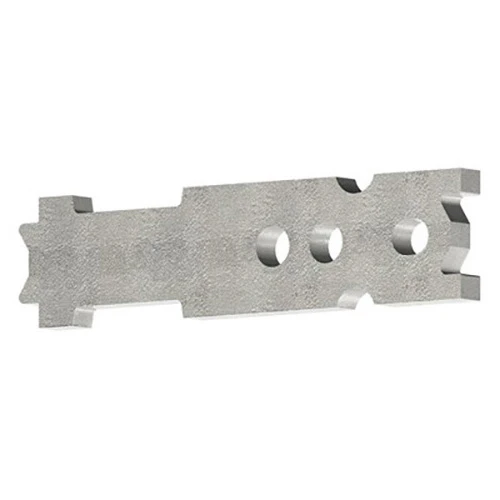

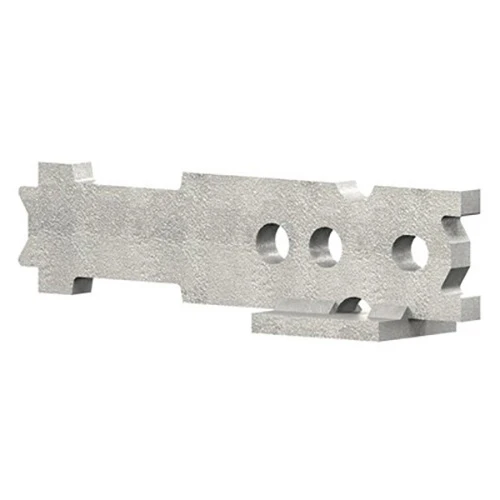

| T-Bar Anchor | Tech Anchors | tech erection anchors with shear plate | tech erection anchors | Two-Hole Anchors |
 |  |  |  |  |
| Forged Insulated Panel Anchor | Spread Anchors | Forged Erection Anchor with bar | Forged Erection Anchor | Y Erection Anchor |
Specification of Erection Anchors
| |||||||||||
Part | Ton | Ring Clutch System | Width | Length | Thickness | HD | A | B | N | Anchor Ultimate | Weight Per |
GMEQL527G | 2T | 2T-3T(OLO01) | 2' | 3/8" | 3/8" | 5/8" | 5/8" | 2-5/8" | 1-13/16 | 16000 | 1.46 |
GMEQL548G | 4T | 4T-6T(OLO02) | 2-1/2" | 10-7/16" | 5/8" | 3/4" | 3/4" | 2-5/8" | 2-12" | 32000 | 3.7 |
GMEQL589G | 8T | 8T-11T(OLO03) | 3-3/4" | 13-1/2" | 3/4" | 1" | 1" | 3-5/8" | 3-1/8" | 64000 | 8.65 |
Please contact us for other styles and sizes
Factory of Erection Anchors
First, the technician is familiar with the drawings, makes the measurement technology disclosure, and then the full- time surveyor draws out the control wire and elevation control wire of the embedded parts and bolts from the measurement control network according to the technical measurement requirements.Then according to the design of the embedded anchor bolts and embedded parts of the center, the height of the specific location.

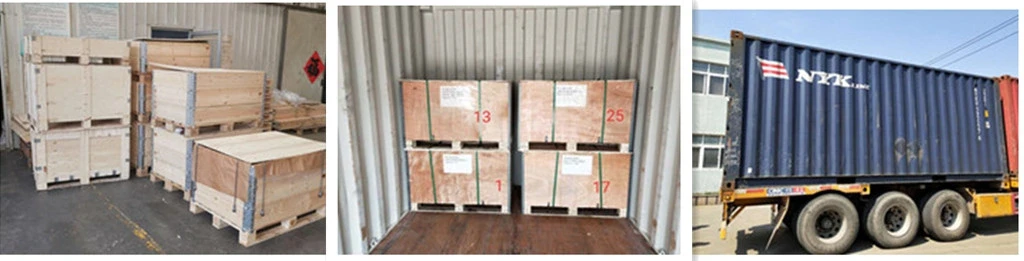

Package of erection anchors
For small size, pack it in bags first, and then pack it in plywood box, and for big size, pack it in plywood box directly.

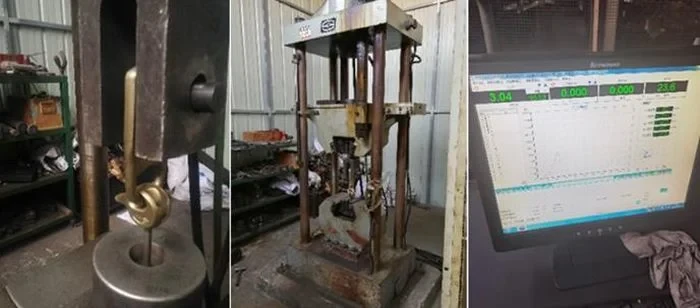

Test of erection anchors
All production processes are carried out in accordance with ISO9001 standards, we will conduct tensile testing as a QCM during the production process, and conduct dimensional inspection, tensile testing before shipment, and issue EATHU reports for customers.

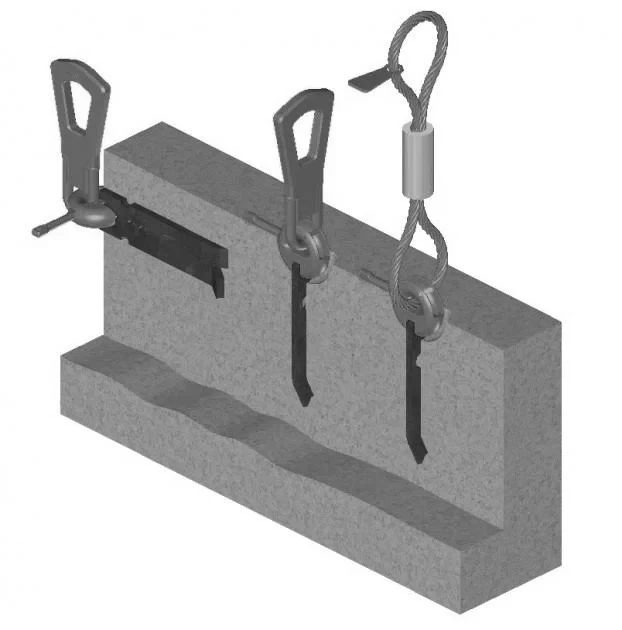

Application of erection anchors
1.Measuring positioning:
First, the technician is familiar with the drawings, makes the measurement technology disclosure, and then the full- time surveyor draws out the control wire and elevation control wire of the embedded parts and bolts from the measurement control network according to the technical measurement requirements.Then according to the design of the embedded anchor bolts and embedded parts of the center, the height of the specific location.
2.stationary barrier:
Put the relative elevation point on the fixed support standing pile, the bottom should be welded reliably, completely separated from the formwork fixing frame, steel fixing frame, etc., and ensure that the fixing frame should have enough stiffness and stability.
3.Put the bolt
After the fixing frame is installed, the bolt installation should be fixed according to the positioning line, and then adjust the elevation, and temporarily reinforce according to the requirements of the scheme.
4.The retest is fixed at the end
After placing the bolts and embedded parts are installed, the surveyor shall adjust and check the bolts and embedded parts again. After the inspection meets the standard requirements, the lower bolt shall be firmly fixed with the fixing frame.At the same time, the bolt fixing frame in the two directions of welding scissors to be strengthened
