Did you know that neodymium magnets are the strongest permanent magnets in the world? In this guide, we take you step by step through the process flow of neodymium magnet production, from raw material selection to final inspection. Our certified NdFeB magnets are used in electric vehicles, renewable energy, sensors, and industrial automation. Understanding the production process helps you choose the right supplier and ensures consistent performance for your applications.
Main Components of NdFeB Alloy
When selecting neodymium-iron-boron magnets, understanding the alloy composition is crucial for achieving the desired magnetic performance. Here's a breakdown of the main elements:
Neodymium (Nd) – 29–32%
You rely on neodymium for the high magnetic strength of the magnet. It directly impacts the remanence (Br) and energy product.
Iron (Fe) – 60–70%
Iron forms the structural matrix. You need it for mechanical stability and to support magnetic domains.
Boron (B) – ~1%
Boron helps stabilize the crystal structure. It ensures you achieve high coercivity and consistent performance.
Dysprosium (Dy) – Optional, 1–3%
You include dysprosium when higher temperature resistance or improved coercivity is required.
Praseodymium (Pr) – 3–5%
You may use praseodymium as a partial substitute for neodymium to optimize performance and reduce cost.
Other minor elements (Co, Nb)
You can add cobalt or niobium to enhance corrosion resistance or mechanical strength for demanding applications.
Process flow of neodymium magnet
To ensure that your application products possess consistent quality, exceptional magnetic properties, and lasting durability, gaining a deep understanding of the neodymium magnet production process is essential.
1. Raw material preparation and pretreatment:
Process Description: The raw materials are pre-treated by weighing, crushing, breaking, and derusting.
Process Equipment: steel cutting machine, drum polishing machine, etc.
2. Smelting:
Process Description: The raw materials such as praseodymium, neodymium, pure iron, and ferroboron, after pretreatment, are proportioned, added into the vacuum smelting furnace, and the belt is thrown after high-temperature smelting under the protection of argon. The results show that the product has uniform composition, high crystal orientation, good microstructure consistency, and avoids the formation of λ - Fe.
Process Equipment: vacuum melting furnace.
3. Hydrogen explosion:
Process Description: The hydrogen explosion (HD) process uses the hydrogen absorption characteristics of rare earth intermetallics to place the neodymium iron boron alloy in the hydrogen environment. Hydrogen enters the alloy along the neodymium-rich phase layer, making it expand, burst, and break, and crack along the neodymium-rich phase layer, so as to ensure the integrity of the main phase grains and the neodymium-rich phase interphase. HD technology makes the Nd-Fe-B casting very loose, which greatly improves the efficiency of the air flow mill and reduces the production cost.
Process equipment: Vacuum hydrogen treatment furnace.
4. Pulverizing:
Process Description: air flow grinding is to use the high-speed collision of the material itself to crush, with no wear and no pollution on the inner wall of the grinding chamber, so the powder can be prepared efficiently.
Process equipment: air mill.
5. Forming orientation:
Process Description: The function of orientation is to turn the easy magnetization direction, c-axis of disorderly oriented powder particles, to the same direction, to obtain the maximum remanence. The main purpose of pressing is to crush the powder into a certain shape and size, while maintaining the grain orientation obtained in the magnetic field orientation as much as possible. We design and use the forming magnetic field press and the isostatic press for the secondary forming. For the special-shaped magnet, we use special mold tooling to directly form it. After sintering, the magnet can be put into use only with a little surface treatment, which greatly saves the cost of materials and subsequent processing.
Process equipment: magnetic field press, isostatic press
6. Sintering:
Process Description: Sintering is a simple and cheap way to change the microstructure of materials and improve the magnetic properties of materials. Sintering is the final forming process of materials, which has a very important influence on the density and microstructure of magnets.
Process equipment: vacuum sintering furnace.
7. Machining:
Process Description: The Nd-Fe-B magnets obtained after sintering are all blanks, which need further machining to obtain products of different sizes and shapes. Because of its brittleness and poor mechanical properties, NdFeB magnets can only be ground and machined.
Process equipment: surface grinder, double face grinder, and chamfering machine.
8. Surface treatment:
Process introduction: the surface treatment of various shapes of rare earth permanent magnets, such as electrophoresis, galvanizing, nickel, nickel copper nickel, and phosphating, is carried out to ensure the appearance and corrosion resistance of the products.
9. Inspection and packaging of finished products:
Process Description: to test all kinds of magnetic properties, corrosion resistance, high temperature performance, etc. of the products, and pack them after reaching the standard, to meet the needs of customers.
Industrial Applications of NdFeB Magnets
When you consider sourcing NdFeB magnets, understanding their industrial applications helps you choose the right type and specification for your projects.
●Electric Motors & EV Systems
You can use NdFeB magnets in high-efficiency motors for electric vehicles and industrial machinery, delivering strong torque in a compact size.
●Renewable Energy
You rely on these magnets in wind turbines and generators, where stable magnetic performance ensures consistent power output.
●Sensors & Actuators
You can apply NdFeB magnets in precise sensing devices and actuators, improving responsiveness and accuracy in automation systems.
●Consumer Electronics
You find them in hard drives, speakers, and small motors, enabling compact and high-performance electronic products.

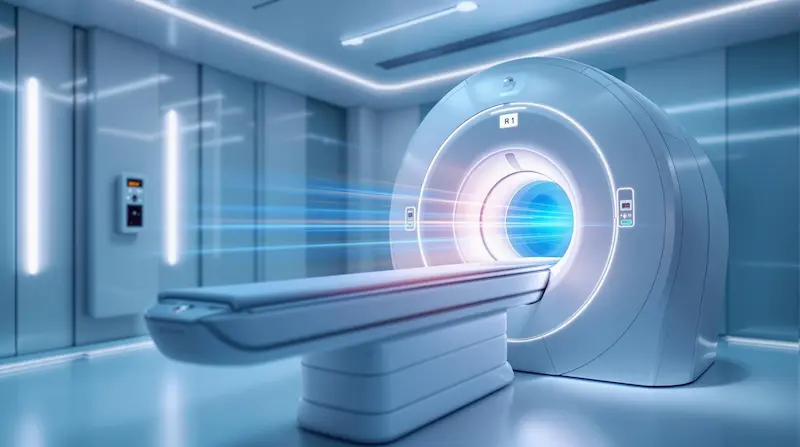

●Medical Equipment
You may integrate NdFeB magnets into MRI machines and other devices, ensuring strong magnetic fields for reliable operation.
Conclusion
By understanding the process flow of neodymium magnets, you can see how each step-from raw material selection to final testing and packaging-affects the performance, durability, and reliability of NdFeB magnets. When you work with a certified and experienced manufacturer, you ensure that your magnets meet strict quality standards and perform consistently in applications such as electric motors, renewable energy systems, sensors, and medical equipment. You also gain the confidence that every magnet is carefully tested and packaged for safe delivery. If you are ready to source custom NdFeB magnets or want detailed specification sheets, contact us today and let our engineers help you find the perfect solution for your project.
